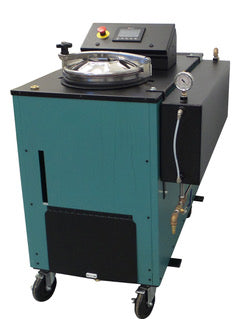

SolvTrue™ S700 & S700V- Industrial Solvent Recycler - 120 or 220V
Asphalt Extraction Solvent Recycler
Choose Voltage & Style from Drop-Down Menu
SolvTrue has been designed to recycle the solvents used in asphalt extraction tests. It successfully extracts pure solvent from the oil and wastes and generates clean solvent ready for reuse in a new test. SolvTrue reduces the need for new solvent and eliminates problems with solvent disposal
**SolvTrue S700V with Vacuum Assist - For Recycling Solvents with High Boiling Points
- Vacuum Assist options are available for recycling solvents with a relatively high boiling point that may exceed the operating range of the standard SolvTrue. As a general rule, any solvent or solvent blend with a boiling point over 180°C/350°F will require the vacuum assist option
Automation
- Microprocessor controlled with easy-to-read LCD display and TouchView PLC
- Custom programming for unique solvent requirements using Waste Solvent Mixture Wizard technology
- Designed and built for multiple shift operations
Safety
- Multiple safety controls with end-of-cycle shutoff
- Automatic mixture ignition and bag operating limits
- RTD probes monitor thermal oil and condenser temperatures
- Oil is self-contained
Ergonomics
- Quiet operation
- Mobile; mounted on locking wheels for easy relocation with stabilizer bar for added support
- Bag-lined tank allows easy removal of solid contaminants
Specifications
| Capacity: | 7 gallons / 26 Liters |
|---|---|
| Voltage: | 120V 60Hz or 240V 60Hz |
| Dimensions: | 22.25”Wx39”Lx44”H (57cmWx99cmHx112cmD) |
| Distillation Rate: | 0.75-1.25 GPH |
| Recovery Yields: | 85-98% |
| Max. Operating Temperature: | 206°C |
| Min. Operating Temperature w/ Tank Liner: | 206°C (Bag Op. Temp. Restricted) |
| Average Volumetric Distillation Rate: | 0.75-1.25 GPH* |
| Estimated Cycle Times: | 5.5-9.0 Hours |

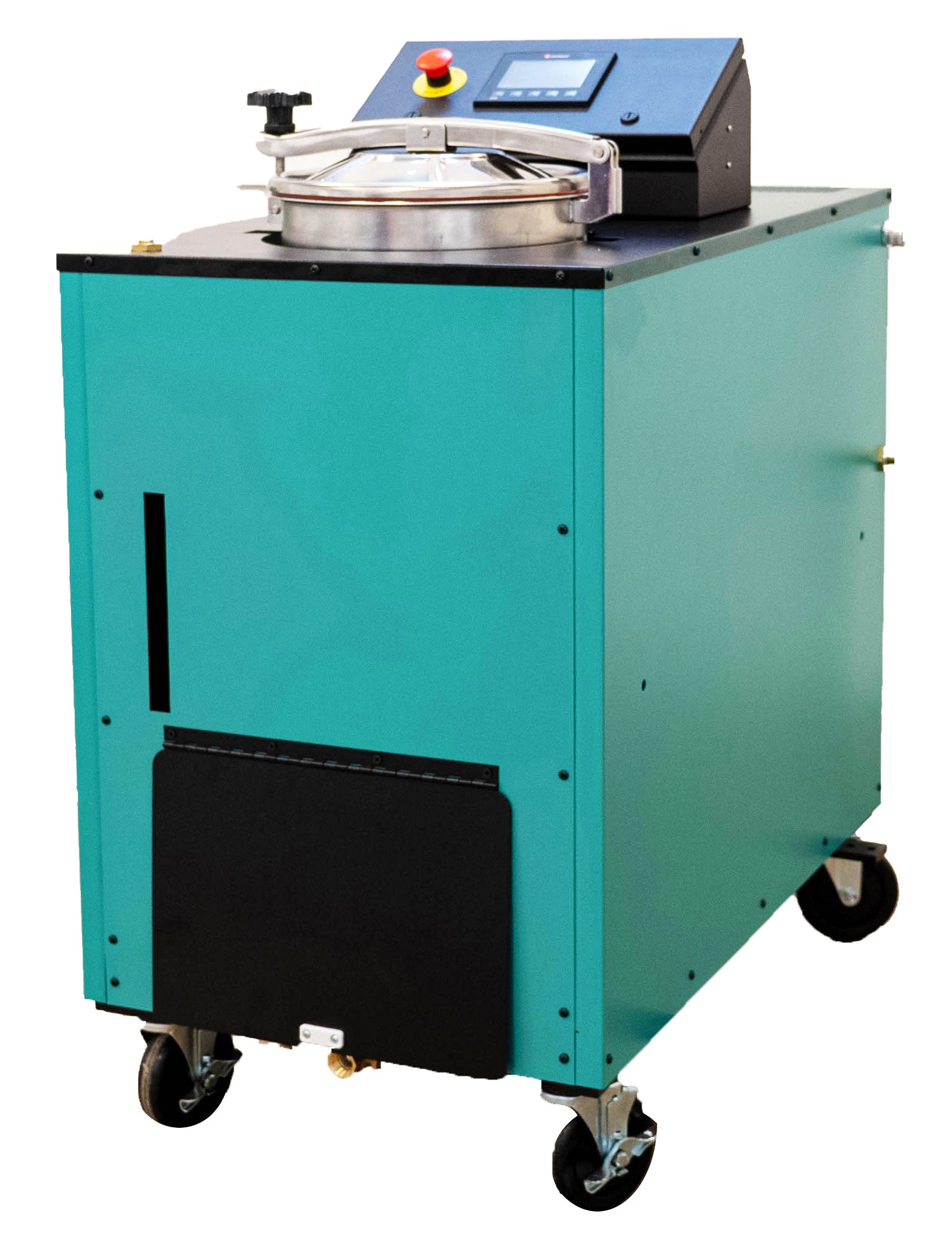

- AC-3000 (120V) or AC-3005 (220V)
