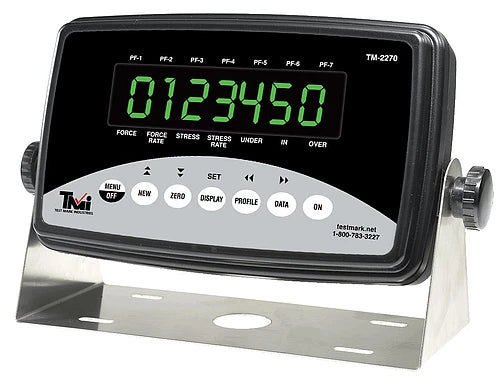

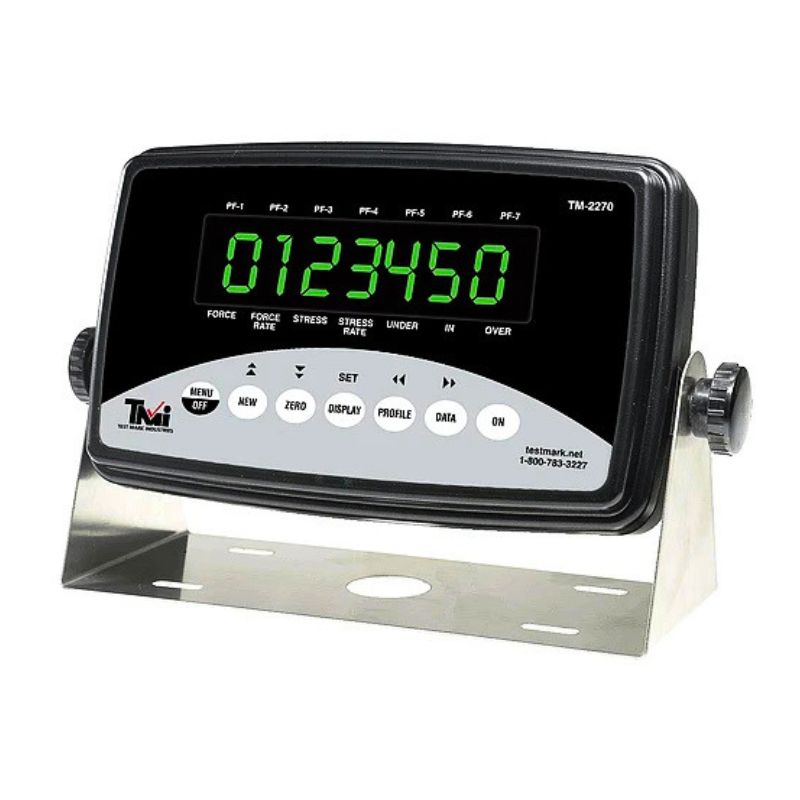

TM-2270 Digital Indicator

The new TM-2270 is an easy-to-use economical Digital Load Indicator loaded with features found in more expensive units.

• Displays both live load and rate of loading values during a test.
• Easy to read 1” (25 mm) tall characters display force units in lbf, kgf, kN and N; stress units in PSI or MPa; time units in seconds or minutes.
• Holds seven different sample types with dimensions for easy test setups.
• Stores test data for 90 tests to include test date and time, sample ID number, sample area, both peak load and stress, length of test and average rate of load for test documentation.
• Print test results with an optional printer or USB transfer to a PC to tabulate test results.

Accuracy exceeds ASTM requirements through a 7-point calibration program. Indicator passes IP69K environment protection for dust or water ingress.

Specifications:

110V, Single-Phase, 60Hz
Sampling rate: 100 HzADC Nonlinearity: +0.01% of Span
Calibration Points: Display: 1” tall, 7 digits
Saved Test Results: Environmental Protections: IP69K

CT-2570
