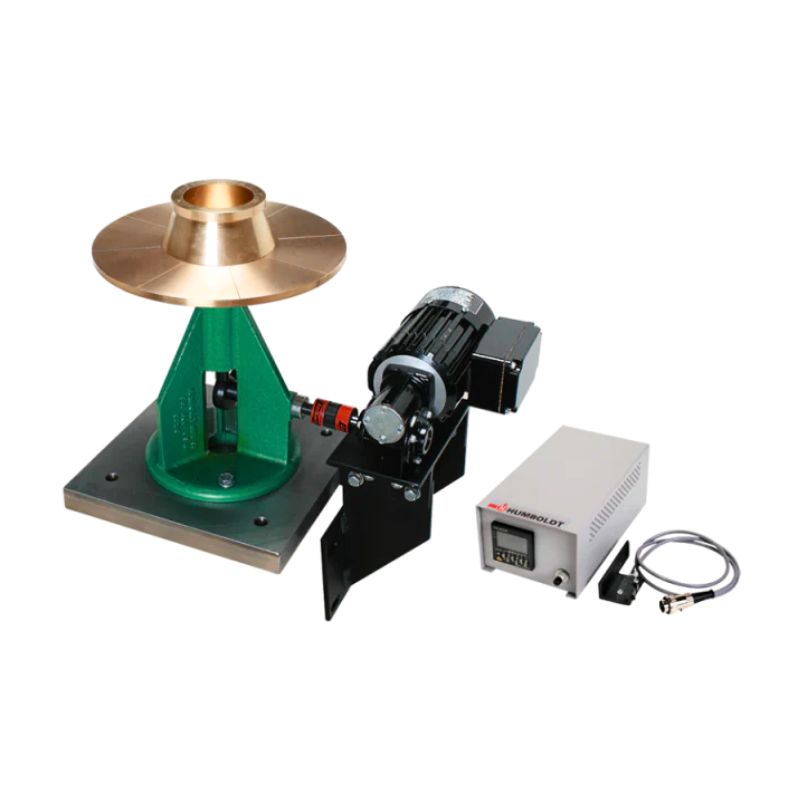

Motorized Flow Table with Counter

The Motorized Flow Table with Counter is used to determine the flow of hydraulic cement mortars and cement pastes. A motor-driven table and automatic counter provide repeatable drop cycles, while the bronze table and cone mold support standardized specimen preparation.

Key Features

• Designed for cement mortar flow-table procedures associated with ASTM C230/C230M and applicable AASHTO methods
• 10-inch-diameter cast-bronze table
• Motor-driven raising and dropping action
• Automatic digital counter
• Motor stops at the preset drop count
• Includes cone mold and heavy-duty table assembly
• 120V, 60Hz version available
• Requires installation on a suitable concrete mounting pedestal

Included Items

Motorized flow table, cast-bronze table/platen, cone mold, motor and digital counter. Concrete mounting pedestal is not included.

Lab Manager's Tip

Plan a rigid concrete mounting pedestal and a suitable 120V electrical connection before commissioning. For ASTM C230/C230M and the associated mortar test, verify table drop height, number of drops and mold condition; mounting rigidity is important to repeatable flow results.

Typical Applications

Hydraulic cement mortar flow, cement paste consistency, mortar QC, concrete materials laboratories and cement research.
