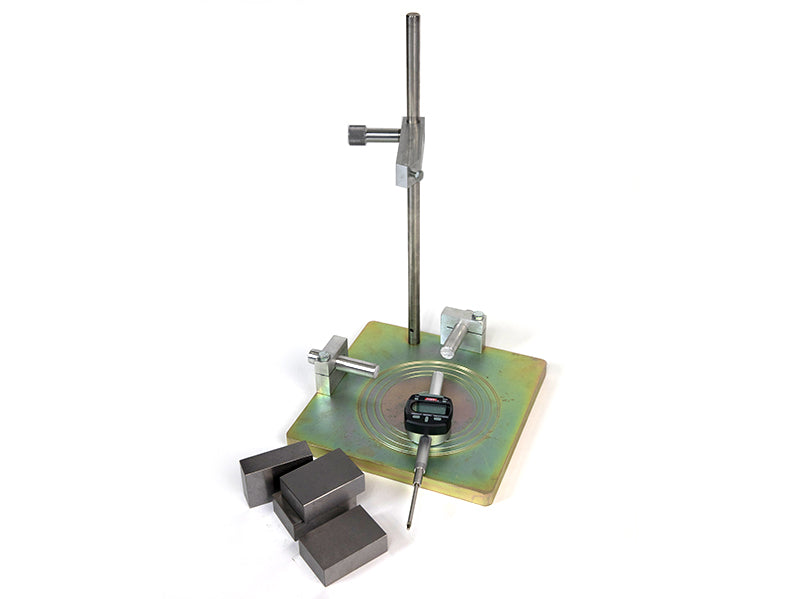

Measuring Assembly with 2" Indicator

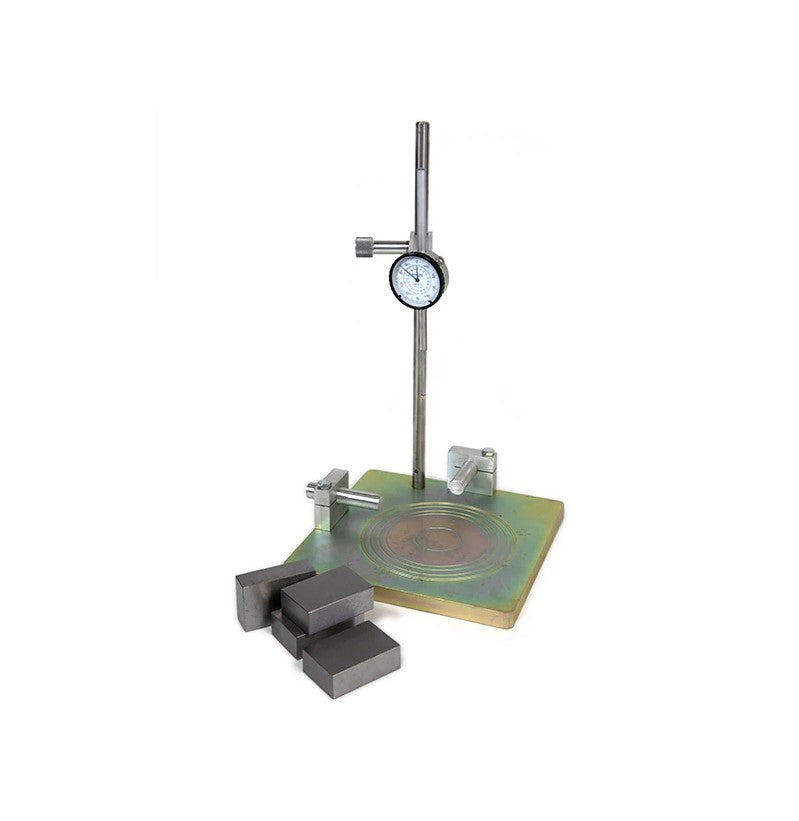

This measuring assembly supports dimensional measurements in laboratory procedures that require a dial or digital travel indicator. It is offered in two configurations, giving laboratories a choice between a traditional dial readout and a digital display. A set of gauge blocks provides reference heights for setup and measurement verification. The assembly is intended for Texas DOT materials testing workflows where repeatable dimensional readings are important.

Key Features

• Designed for equipment setups used with TxDOT Tex-113-E, Tex-114-E and Tex-117-E procedures.
• The choice of dial or digital indicator allows laboratories to match existing workflows and operator preferences.
• Supplied gauge blocks help establish repeatable reference positions during measurement setup.
• A dedicated assembly reduces the need to improvise indicator mounting for routine agency testing.
• The digital option can make readings easier to view and transcribe, while the dial option offers a familiar mechanical display.

Included Items

Measuring assembly with selected 2in travel indicator and gauge blocks from 1in through 12in, as listed by HMA.

Lab Manager's Tip

Check the indicator calibration, travel and gauge block condition before use. For Tex-113-E, Tex-114-E and Tex-117-E, verify the current TxDOT method revision and follow the specified measurement positions and reporting precision; these are TxDOT methods, not ASTM/AASHTO numbers.

Typical Applications

TxDOT soil and flexible-base testing, specimen measurements, laboratory dimensional verification and agency-method setups.
